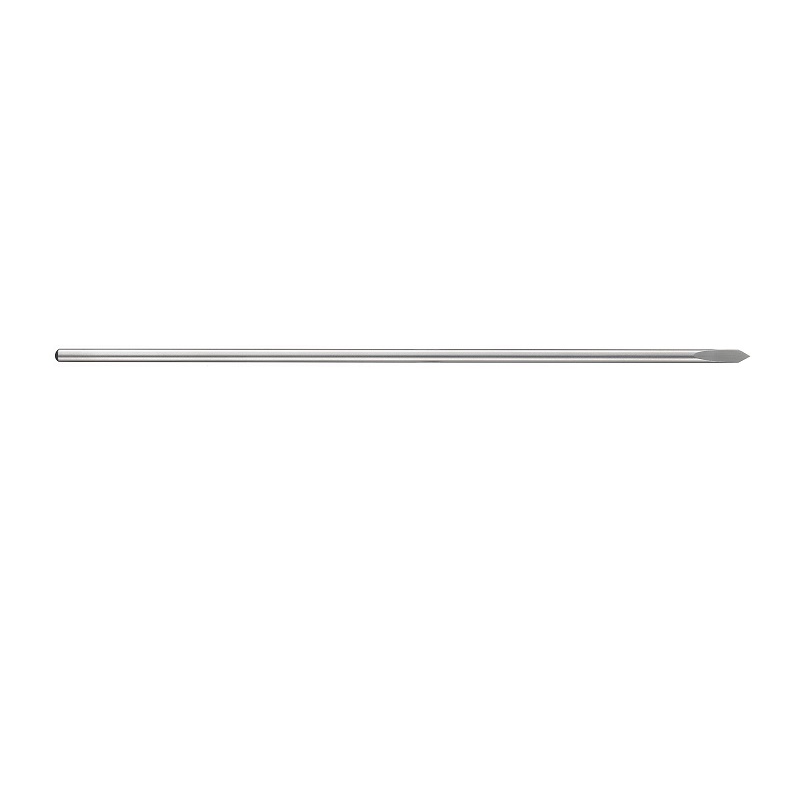

Buy Osteosynthesis Wire 1.6 mm with Lancet Point and Round End
Implant 1.6 mm in diameter with a lancet point and round end, indicated for reduction and fixation of metaphyseal fractures, stable, load-bearing fracture fixation and temporary intraoperative fixation and reduction of fragments. Implant steel 1.4441, chemically passive and non-magnetic on the surface.
The 450 millimetres is the maximum size in this family, and its being in a 1.6 gauge is no accident: it is the length needed to cross a long bone when the implant must remain fine and removable. Twenty-seven lengths in all.
Supplied non-sterile, so the hospital can process it in its own autoclave cycle along with the rest of the instrument set. It is a single-use device: it is not reprocessed once implanted.
| Applications | Osteosynthesis and temporary fixation of bone fragments |
| Point type | Lancet |
| End | Round |
| Diameter | 1.6 mm |
| Lengths available | From 50 mm to 450 mm, 27 sizes |
| Material | Implant steel 1.4441 (DIN EN ISO 5832-1) |
| Use | Single use |
| Packaging | Non-sterile: sterilise before use |
| Sterilisation | Fractionated pre-vacuum autoclave, 134 °C, 5 minutes |
| Regulation | Medical device, class IIb implantable |
| Presentation | Pack of 10 units |
Specifications
| Length | 150 mm, 300 mm, 60 mm, 50 mm, 70 mm, 80 mm, 100 mm, 120 mm, 130 mm, 140 mm, 160 mm, 170 mm, 180 mm, 190 mm, 200 mm, 210 mm, 220 mm, 230 mm, 240 mm, 250 mm, 260 mm, 270 mm, 280 mm, 290 mm, 310 mm, 400 mm, 450 mm |
