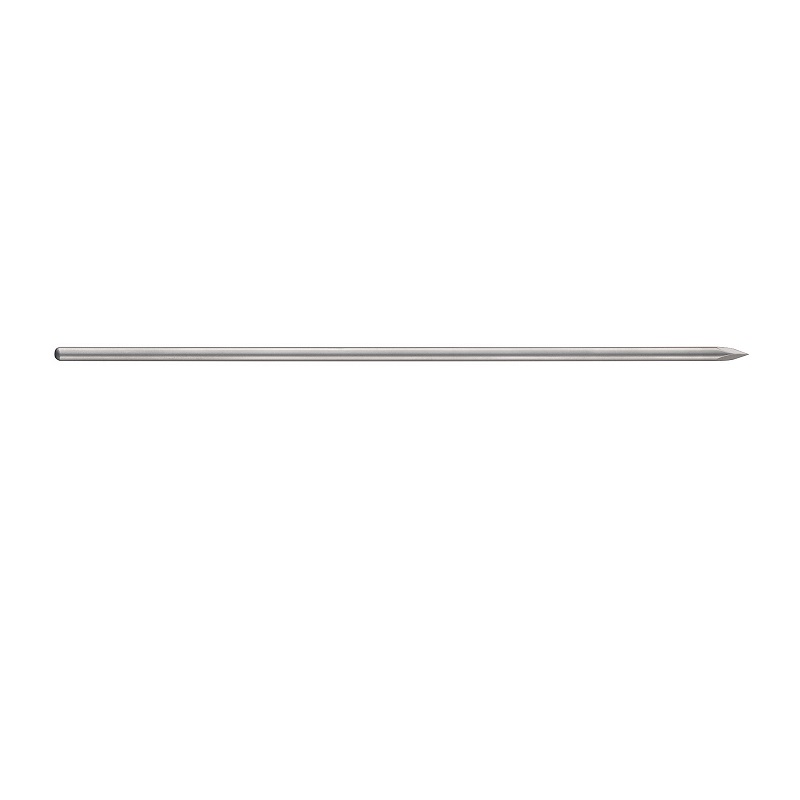

Buy Skeletal Traction Pin 4.5 mm with Trocar Point
Implant 4.5 mm in diameter indicated for stable, load-bearing fracture fixation and for temporary intraoperative fixation and reduction of fragments. Implant steel 1.4441, chemically passive and non-magnetic on the surface, suitable for patients of any age.
The difference from the usual gauge is half a millimetre, but the rigidity of a pin does not grow with diameter, it grows with the fourth power of it: that half millimetre multiplies resistance to bending. This is the gauge chosen when the bone is thick and the fixation has to bear load from day one. Fifteen lengths, from 80 to 300 millimetres.
Supplied non-sterile, so the hospital can process it in its own autoclave cycle along with the rest of the instrument set. It is a single-use device: it is not reprocessed once implanted.
| Applications | Osteosynthesis and temporary fixation of bone fragments |
| Point type | Three-facet trocar |
| End | Round |
| Diameter | 4.5 mm |
| Lengths available | From 80 to 300 mm, fifteen sizes |
| Material | Implant steel 1.4441 (DIN EN ISO 5832-1) |
| Use | Single use |
| Packaging | Non-sterile: sterilise before use |
| Sterilisation | Fractionated pre-vacuum autoclave, 134 °C, 5 minutes |
| Regulation | Medical device, class IIb implantable |
| Presentation | Pack of 10 units |
Specifications
| Length | 150 mm, 300 mm, 80 mm, 100 mm, 120 mm, 140 mm, 160 mm, 180 mm, 200 mm, 220 mm, 230 mm, 240 mm, 250 mm, 260 mm, 280 mm |
