Buy Osteosynthesis Wire 1.4 mm with Double Trocar Point

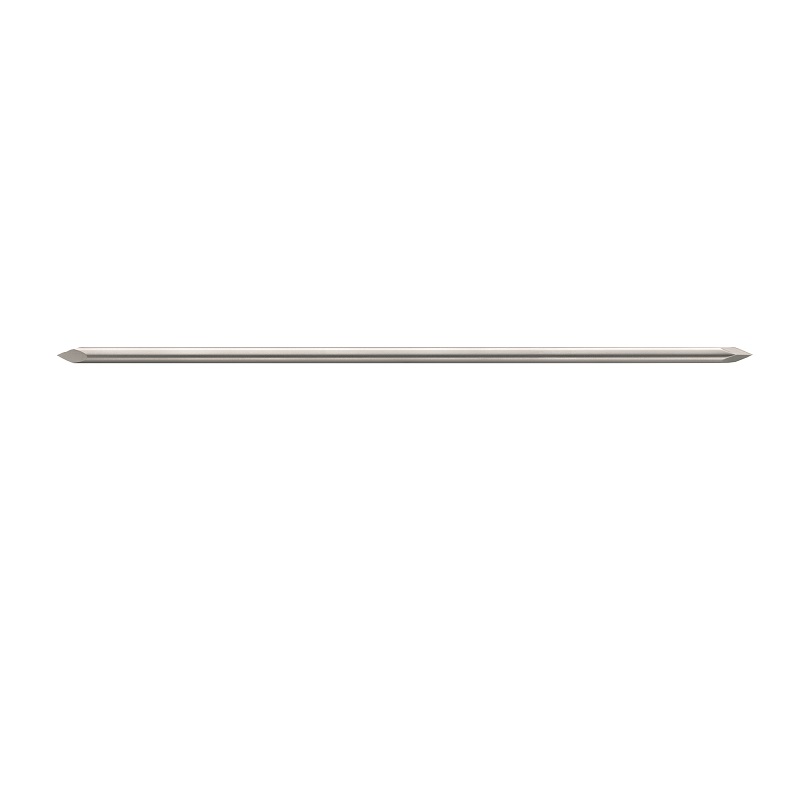

Implant 1.4 mm in diameter with a trocar point at both ends, indicated for reduction and fixation of metaphyseal fractures, stable, load-bearing fracture fixation and temporary intraoperative fixation and reduction of fragments. Implant steel 1.4441, chemically passive and non-magnetic on the surface.
One four is where this family changes scale: the 400 millimetre size appears, which none of the fine gauges has, and the thickness already lets the wire hold on its own instead of accompanying. Twenty-seven lengths in all, from 50 to 400.
Supplied non-sterile, so the hospital can process it in its own autoclave cycle along with the rest of the instrument set. It is a single-use device: it is not reprocessed once implanted.
| Applications | Osteosynthesis and temporary fixation of bone fragments |
| Point type | Double trocar, one at each end |
| End | Second point, no blunt end |
| Diameter | 1.4 mm |
| Lengths available | From 50 mm to 400 mm, 27 sizes |
| Material | Implant steel 1.4441 (DIN EN ISO 5832-1) |
| Use | Single use |
| Packaging | Non-sterile: sterilise before use |
| Sterilisation | Fractionated pre-vacuum autoclave, 134 °C, 5 minutes |
| Regulation | Medical device, class IIb implantable |
| Presentation | Pack of 10 units |
Specifications
| Length | 150 mm, 300 mm, 60 mm, 50 mm, 70 mm, 80 mm, 100 mm, 120 mm, 125 mm, 130 mm, 140 mm, 160 mm, 170 mm, 180 mm, 190 mm, 200 mm, 210 mm, 220 mm, 230 mm, 240 mm, 250 mm, 260 mm, 270 mm, 280 mm, 290 mm, 310 mm, 400 mm |
